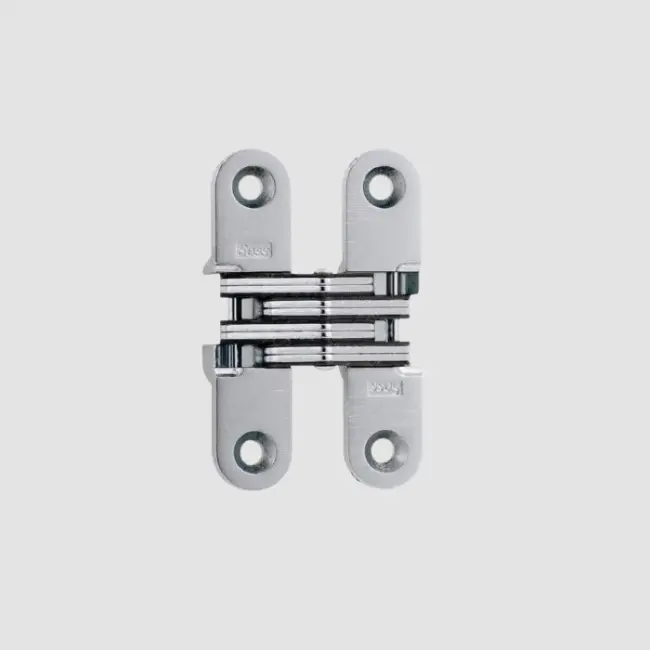

Hidden Hinge

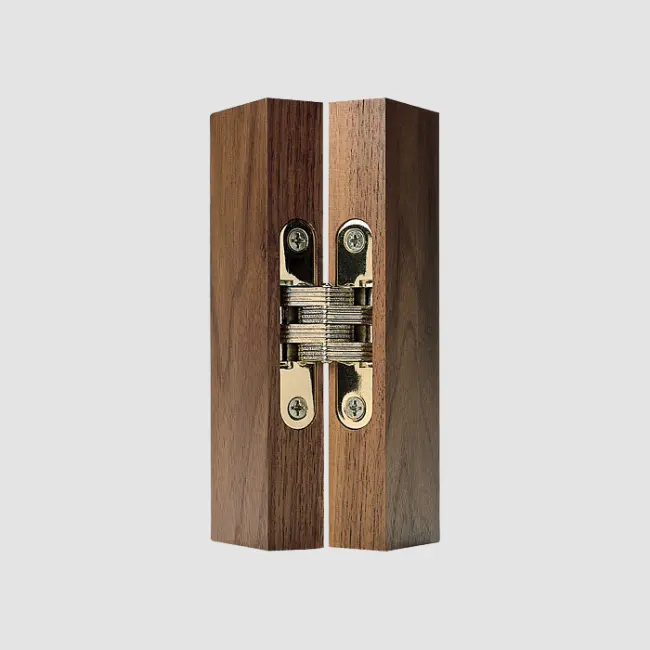

Richelieu's concealed hinges offer superior appearance and durability with contemporary and functional style. They easily install and can be used for many applications on wood or metal doors to meet all your needs.

$ 49.99 $ 49.99
$ 49.99

Not Available For Sale

  • Select Color

This combination does not exist.

Contact Us



Share

Advantages and Benefits
  •  Security: When closed, the SOSS concealed hinge cannot be seen or tampered with. When opened, the riveted hinge pin is non-removable.
  • Safety: The moving pivot point remains inside the hinge during movement until fully opened, eliminating an external pinch point on the back side of the door.
  • Strength: The installed hinge is firmly anchored in a deep, full mortise with screws to support the door and provide a rigid and secure installation.
  • Superior Construction: Concealed hinges are designed to ensure reliable operation for years. The standard hinges are made of high-strength steel and zinc alloy.
  • Smooth Operation: All hinges have been designed and developed to give smooth performance and reduce friction.


Specifications

Installation Files

Dimensions

Instructions

Instructions


Instructions

Product #

429208145

Minimum Door Thickness

1 in

Material

Steel

Type of Hinge

Wood or Metal

For Hinge #

208

Brand

Soss

Wood Screw Sizes

#8 x 1-1/4" (4.2 mm x 32 mm)

Center to Center (mm)

2 1/8 in

Door/Jamb Gap (mm)

9/64 in

Door/Jamb Inset (mm)

9/64 in

Screw/Nail

Screw/Nail (Included)

Fixing Type

Screw-On

Mounting Type

Mortise

Cabinet Angle

180°

Width

5/8 in

Leaf Gap

29/64 in

Length

2 3/4 in

Door/Jamb Gap

9/64 in

Door/Jamb Inset

5/32 in

Leaf Body Mortise Length

1 11/32 in

Door/Jamb Gap in Closed Position

3/64 in

Height

29/32 in

Leaf Mortise Depth

9/32 in

Handedness

Reversible

Hinge Opening Angle

+180°
