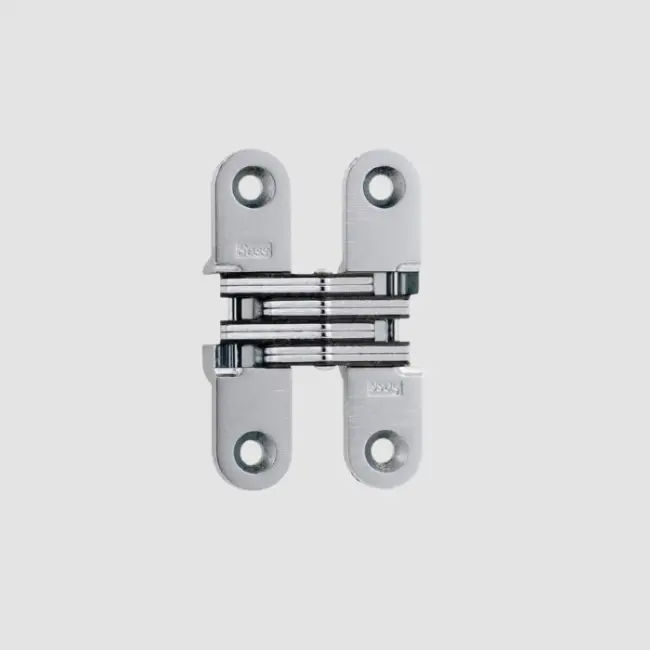

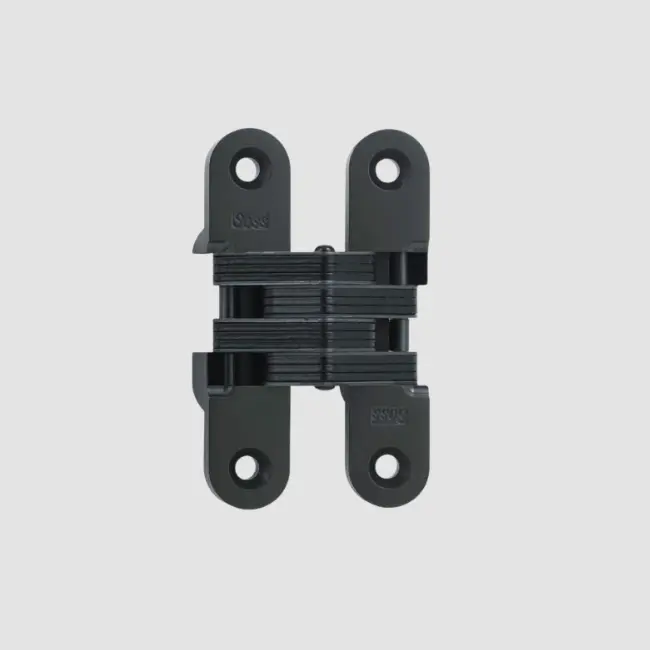

Soss Concealed Steel Hinge M208

Soss Concealed Steel Hinge M208

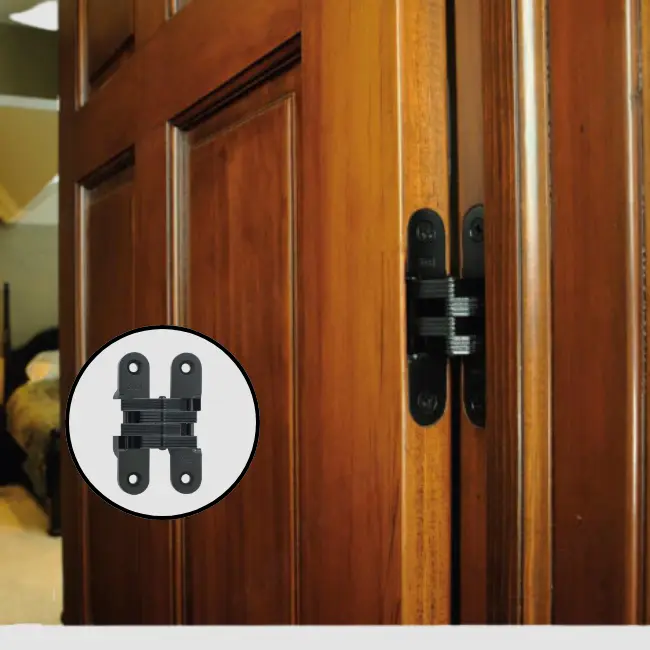

The SOSS M208 Concealed Hinge is engineered for doors that demand a clean, uninterrupted look. Hidden when the door is closed, this heavy-duty steel hinge delivers strength and smooth operation for wood, metal, or composite doors where appearance and security matter most. Commonly used in cabinetry, custom furniture, architectural panels, and flush doors.

$ 49.99 $ 49.99
$ 49.99

$25.99

  • Select Color

This combination does not exist.

Contact Us



Share

Advantages and Benefits:
  • Security: When closed, the SOSS concealed hinge cannot be seen or tampered with. When opened, the riveted hinge pin is non-removable.
  • Safety: The moving pivot point remains inside the hinge during movement until fully opened, eliminating an external pinch point on the back side of the door.
  • Strength: The installed hinge is firmly anchored in a deep, full mortise with screws to support the door and provide a rigid and secure installation.
  • Superior Construction: Concealed hinges are designed to ensure reliable operation for years. The standard hinges are made of high-strength steel and zinc alloy.
  • Smooth Operation: All hinges have been designed and developed to give smooth performance and reduce friction.

At Milano Hardware Inc., we take pride in providing high-quality hardware and design products that enhance your home and lifestyle. We stand behind the quality and craftsmanship of our products and are committed to ensuring your satisfaction.

This Warranty Policy outlines your rights and our responsibilities regarding product warranties. It applies to products purchased directly from Milano Hardware Inc. or through our authorized dealers in Canada.

Read More About Our Warranty Policy

Download Warranty Document


Dimension

Instructions

Instructions

Instructions

Product #429208145

Material:

Steel

For Hinge #

208

Wood Screw Sizes:

#8 x 1-1/4" (4.2 mm x 32 mm)

Door/Jamb Gap (mm):

9/64 in

Screw/Nail:

Screw/Nail (Included)

Mounting Type:

 Mortise

Width:

5/8 in

Length:

2 3/4 in

Door/Jamb Inset:

5/32 in

Door/Jamb Gap in Closed Position:

3/64 in

Leaf Mortise Depth:

9/32 in

Hinge Opening Angle:

+180°

Minimum Door Thickness:

1 in

Type of Hinge:

Wood or Metal

Brand:

 Soss

Center to Center (mm):

2 1/8 in

Door/Jamb Inset (mm):

9/64 in

Fixing Type:

Screw-On

Cabinet Angle:

180°

Leaf Gap:

29/64 in

Door/Jamb Gap:

9/64 in

Leaf Body Mortise Length:

1 11/32 in

Height:

29/32 in
