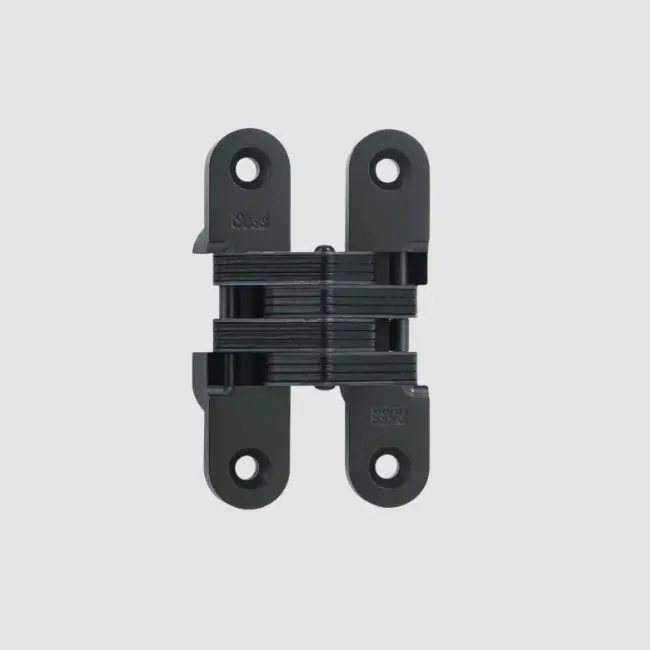

Soss Concealed Steel Hinge M216

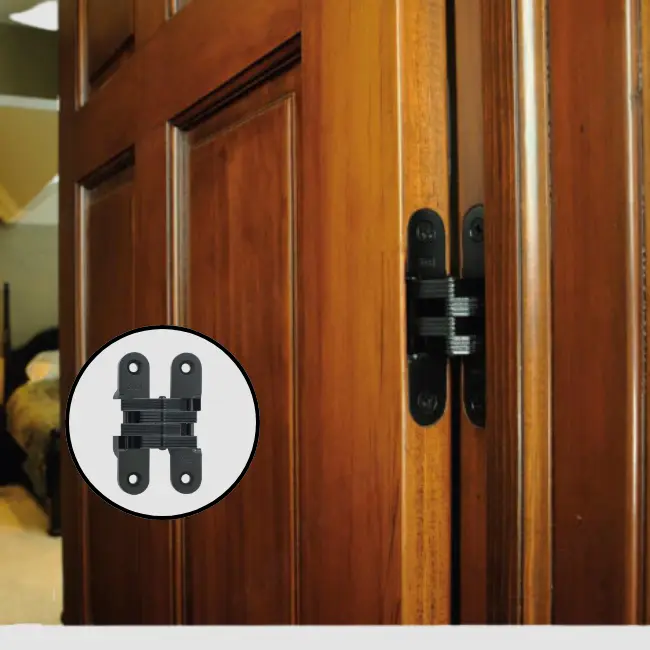

The SOSS M216 Concealed Hinge is engineered for doors that demand a clean, uninterrupted look. Hidden when the door is closed, this heavy-duty steel hinge delivers strength and smooth operation for wood, metal, or composite doors where appearance and security matter most. Commonly used in cabinetry, custom furniture, architectural panels, and flush doors.

Benefits:

  • Security: When closed, the SOSS concealed hinge cannot be seen or tampered with. When opened, the riveted hinge pin is non-removable.
  • Safety: The moving pivot point remains inside the hinge during movement until fully opened, eliminating an external pinch point on the back side of the door.
  • Strength: The installed hinge is firmly anchored in a deep, full mortise with screws to support the door and provide a rigid and secure installation.
  • Superior Construction: Concealed hinges are designed to ensure reliable operation for years. The standard hinges are made of high-strength steel and zinc alloy.
  • Smooth Operation: All hinges have been designed and developed to give smooth performance and reduce friction.
$ 120.00 $ 120.00
$ 120.00

$26.98

  • Select Color

This combination does not exist.

Contact Us



Share

Applications:
  • The concealed hinges are used by designers, architects, and engineers to help solve design problems associated with today`s ultra modern materials. Our hinges are found in many applications where concealment, compact size, and smooth operation are essential.
  • Concealed hinges can be found in various high-tech products, including computers, cash registers, copy machines, medical equipment, and office equipment.
  • Limited only by the imagination of the designer, SOSS concealed hinges are used in Cessna Bravo jets, custom furniture by experts in the cabinet and display industry and wherever invisibility and flexibility are of paramount importance.
  • SOSS concealed hinges open a full 180° and operate with a single action. Ideally suited for mirrored doors, gates, wall panels, pass doors, storage cabinets, electronic and computer devices, wall units, hidden doors, pharmaceutical storage areas, courtrooms, and churches.
  • SOSS concealed hinges are used in restaurants, homes, and offices to create environments with clean lines.

At Milano Hardware Inc., we take pride in providing high-quality hardware and design products that enhance your home and lifestyle. We stand behind the quality and craftsmanship of our products and are committed to ensuring your satisfaction.

This Warranty Policy outlines your rights and our responsibilities regarding product warranties. It applies to products purchased directly from Milano Hardware Inc. or through our authorized dealers in Canada.

Read More About Our Warranty Policy

Download Warranty Document


Dimension

Instructions

Instructions

Instructions

Line Art

Product #429216145

Product Door Thickness:

1 3/8 in

Material:

Steel

Finish:

Black, Satin Nickel and Satin Chrome

Fire Resistant:

20 Minutes

For Hinge #

216

Wood Screw Sizes:

#14 x 1-1/2" (6.3 mm x 38 mm)

Center to Center(mm):

3 5/8 in

Door/Jamb Gap (mm):

7/32 in

Door/Jamb Inset (mm):

23/32 in

Standards and Certifications:

UL R13634

Screw/Nail:

Screw/Nail (Included)

Fixing Type:

Screw-On

Mounting Type:

 Mortise

Cabinet Angle:

180°

Leaf Gap:

47/64 in

Width:

1 in

Length:

4 5/8 in

Height:

1 15/32 in

Door/Jamb Inset:

1/4 in

Door/Jamb Gap:

15/64 in

Leaf Body Mortise Length:

2 19/32 in

Door/Jamb Gap in Closed Position :

1/16 in

Leaf Mortise Depth:

15/32 in

Handedness:

Reversible

Hinge Opening Angle:

+180°
