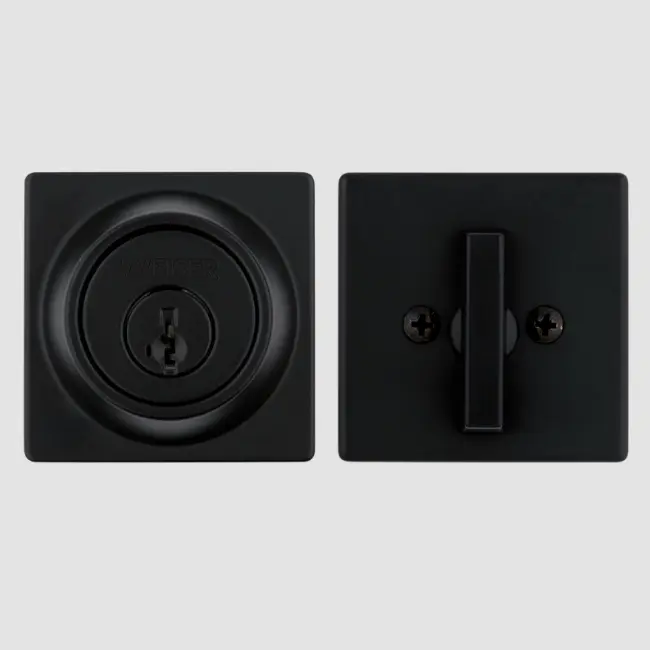

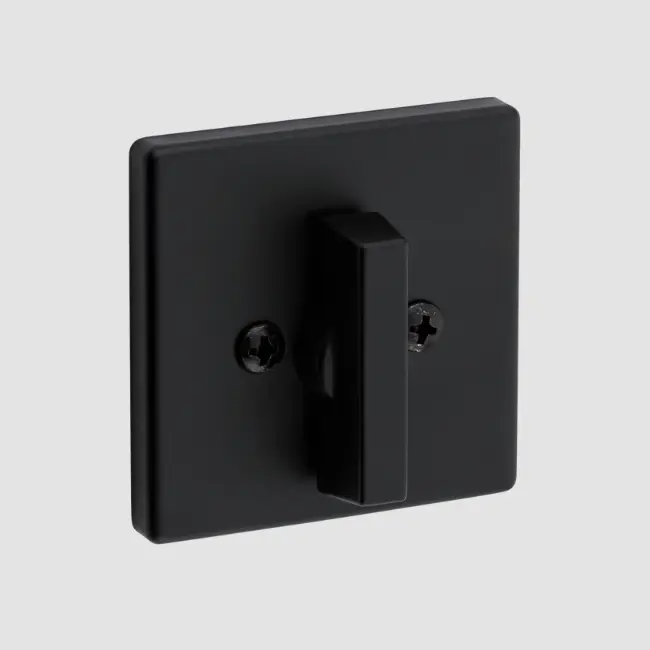

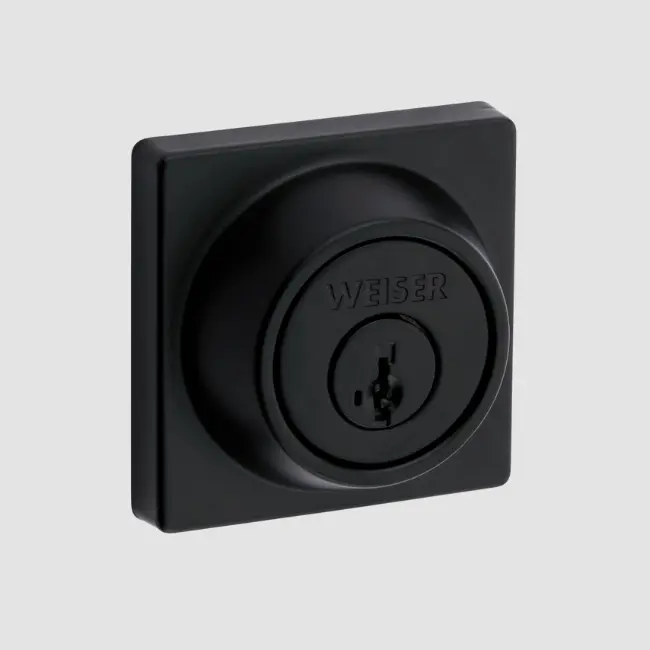

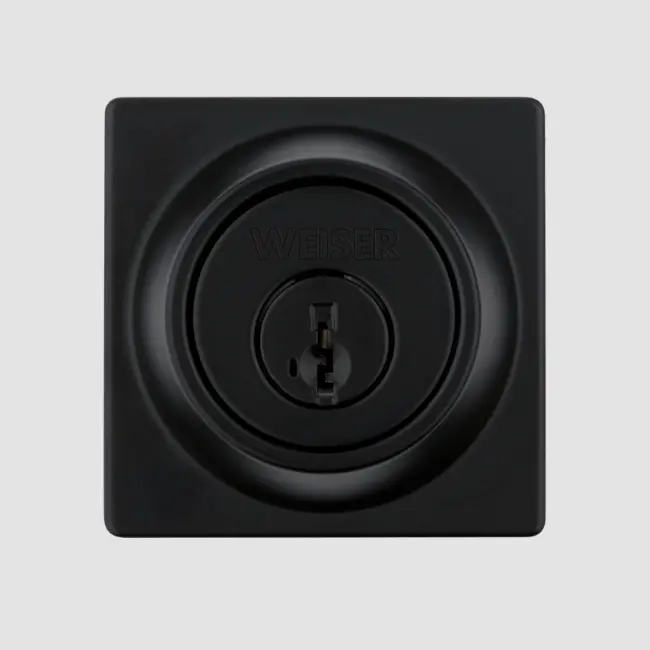

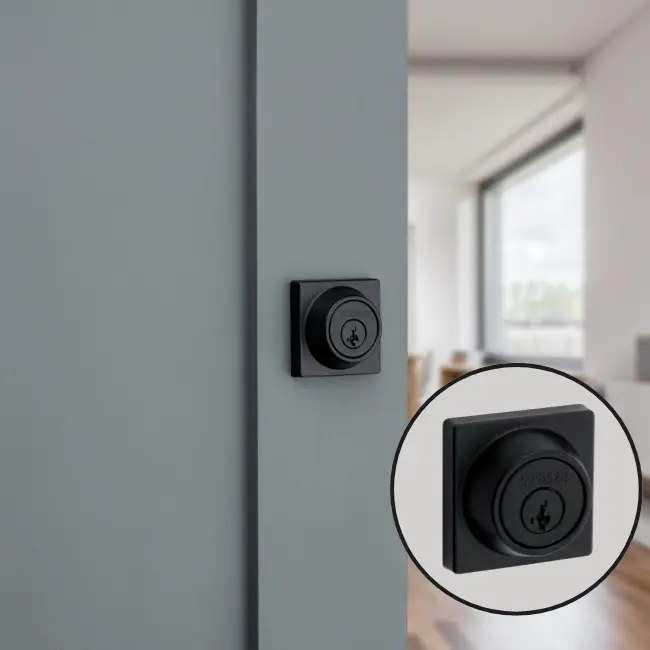

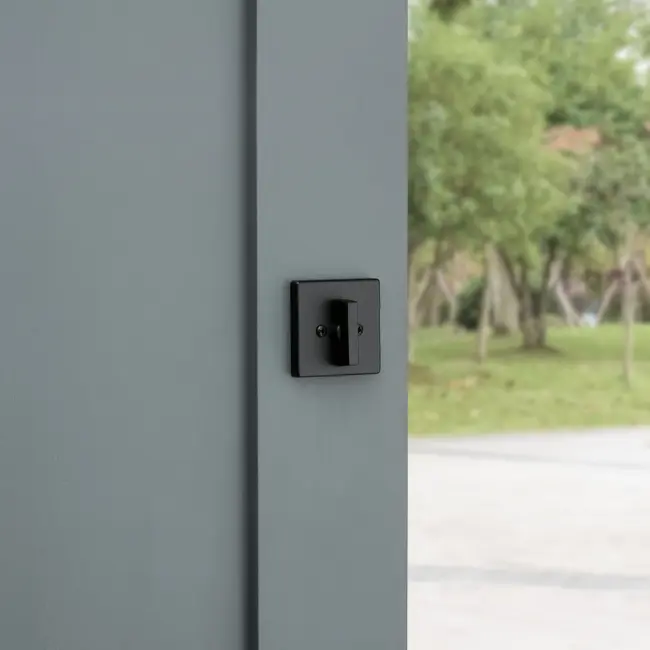

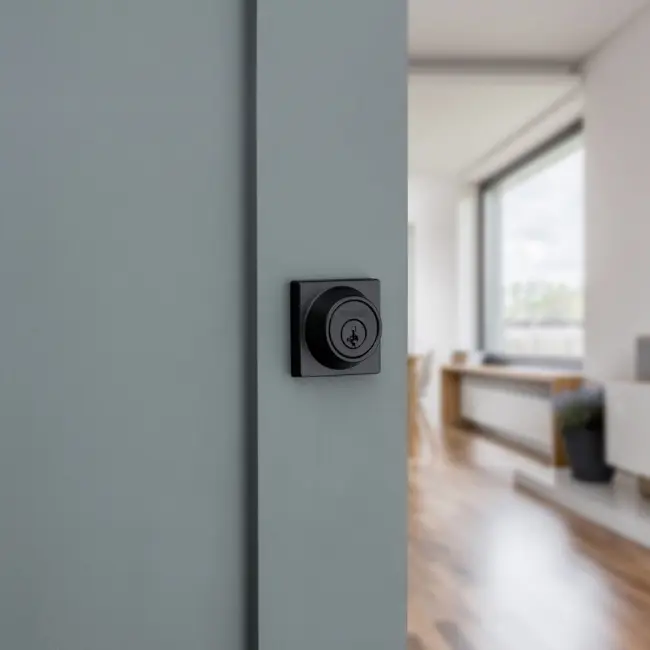

Weiser Elements Square Deadbolt

This single cylinder deadbolt can be locked or unlocked by a key on the outside, or the turn piece on the inside.
$ 40.99 $ 40.99
$ 40.99

Not Available For Sale

  • Select Color

This combination does not exist.

Contact Us



Share

Features
  • For use on exterior doors where keyed entry and security is needed
  • Featuring SmartKey® re-key technology; re-key the lock yourself in seconds in 3 easy steps
  • Features an adjustable latch to fit all standard door preparations
  • Locking mechanism functions with turn piece on the interior of the lock
  • 1 in. deadbolt throw
  • ANSI/BHMA grade 3 certified
  • Comes with 2 keys
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty
  • Wholesale Box Packaging - Not Available at Retail

Specifications

Installation Files

All Measurements are in Inches

  • Unique Product ID: 9GDC94710-066 | GDC9471 26D K3 SMT SQT B | Available Online/ In - Store
    9GDC94710-071 | GDC9471 26D K3 SMT SQT B | Wholesale - Not Available at Retail
  • Family: GDC9471
  • Product Type: Deadbolt
  • Style: Contemporary
  • Entry Has Smart Key: Yes
  • ANSI Grade: Grade 3
  • UL Time Rating: 20 min
  • Min Door Thickness: 1-3/8
  • Max Door Thickness: 1-3/4
  • Assembled Length: 1-3/32
  • Assembled Width: 2-17/32
  • Assembled Height: 2-17/32
  • Backset Size: Adjustable
  • Cross Bore: 2-1/8"
  • ADA Compliant: Interior Turn Piece Only
  • Packaging: Wholesale - Not Available at Retail

Installation Guide - English/French
